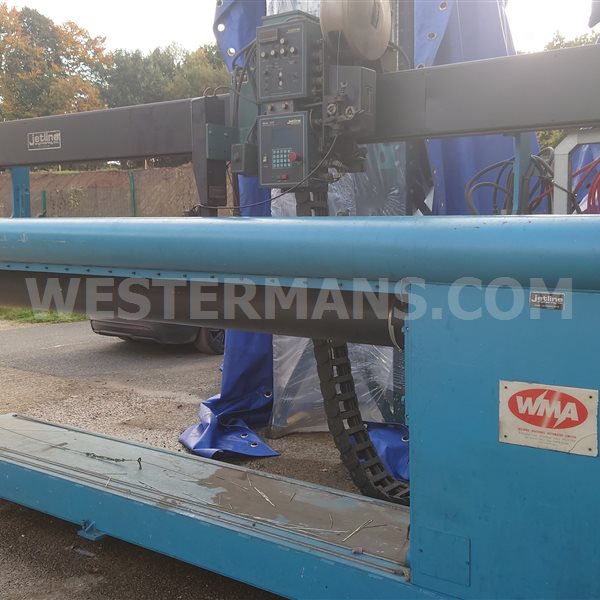

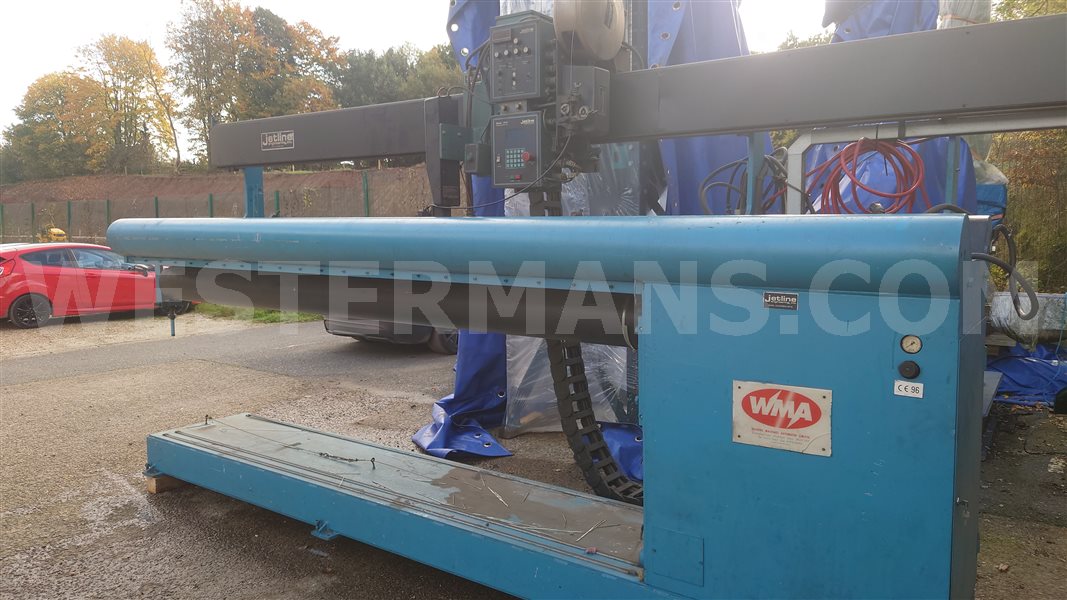

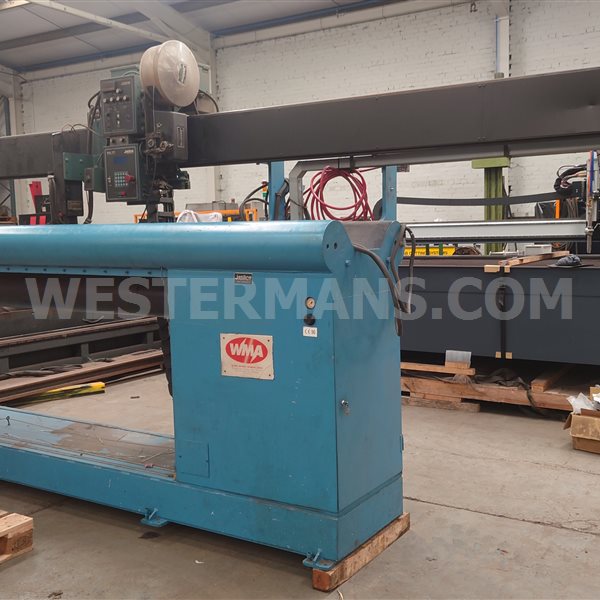

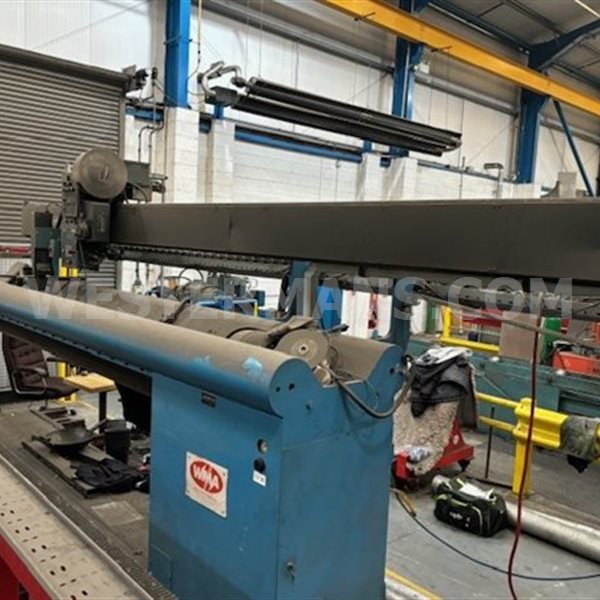

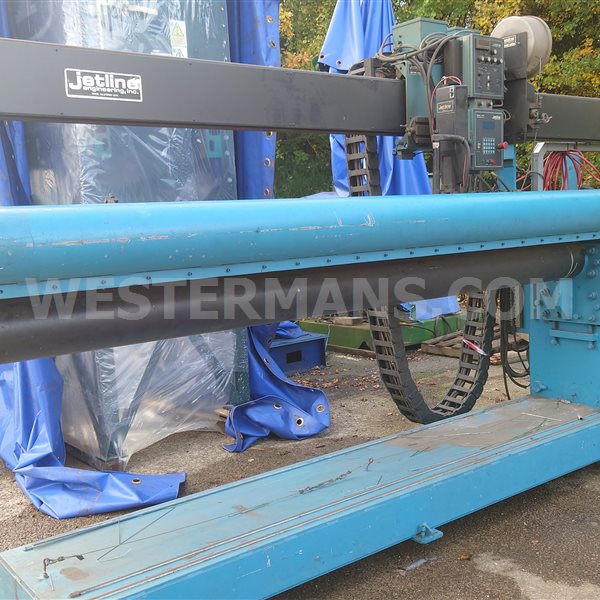

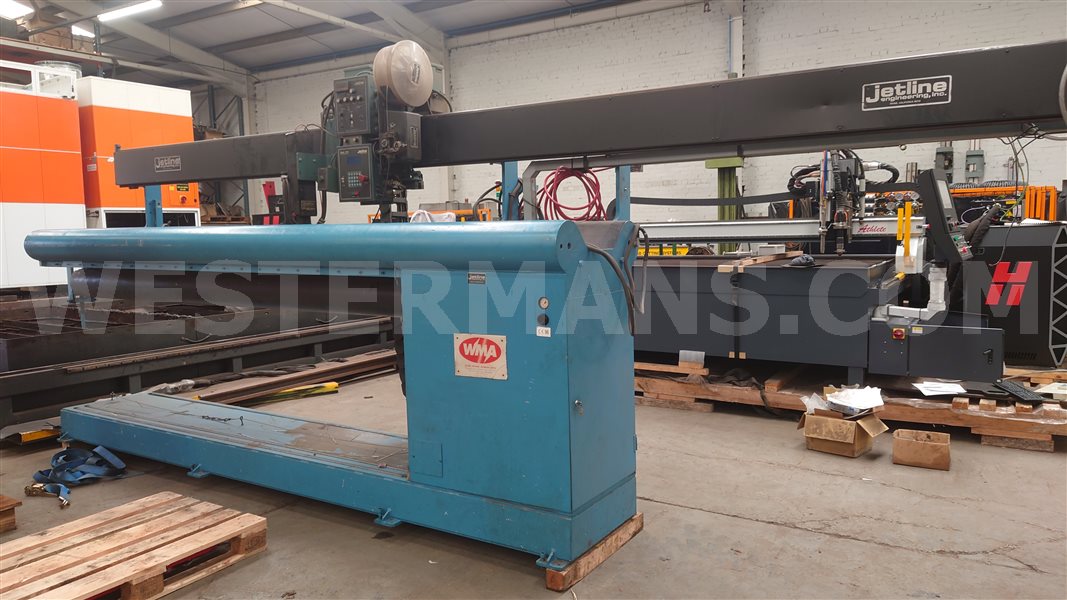

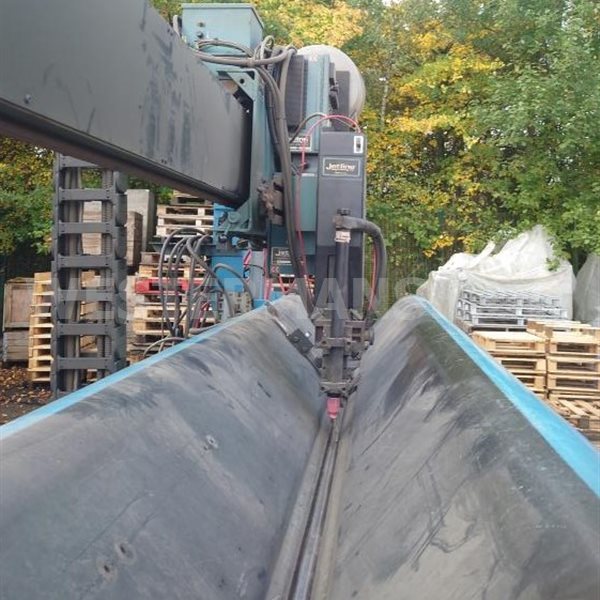

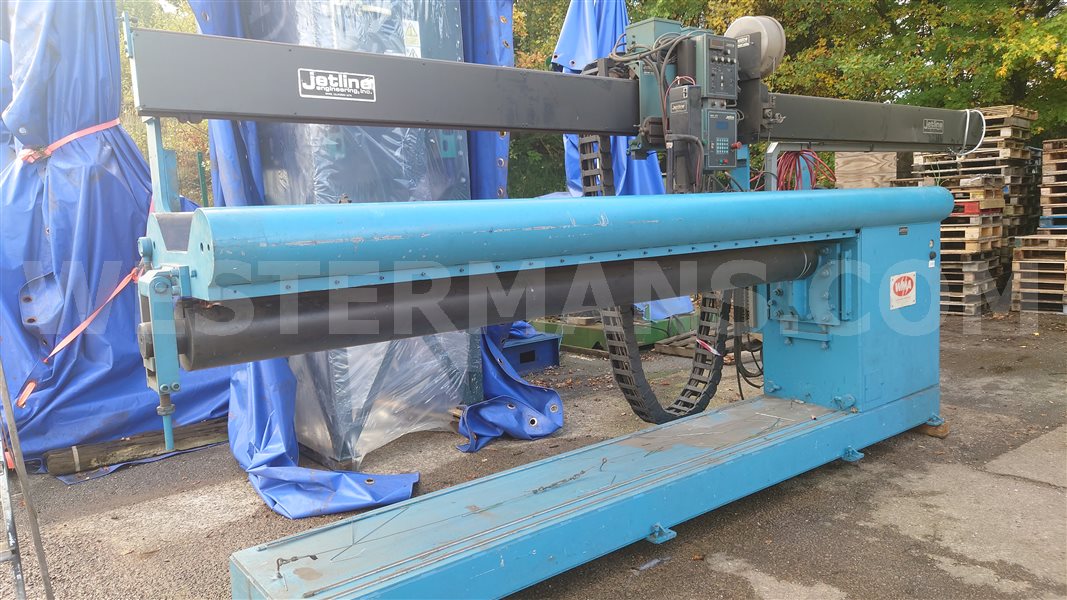

Jetline LWS-120 Longitudinal Seam welder, 3050mm

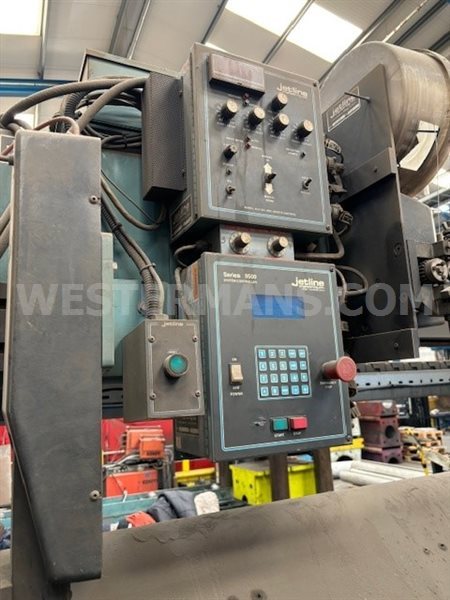

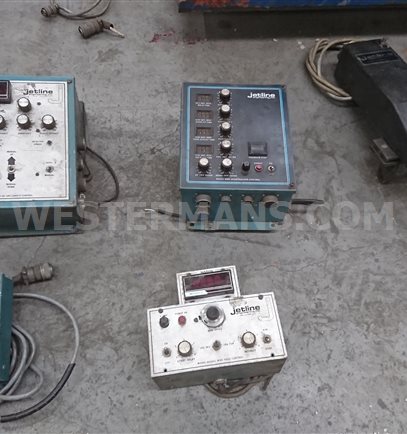

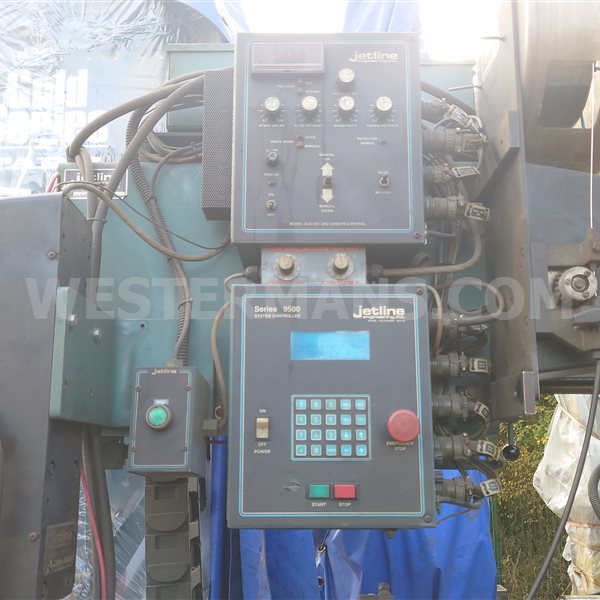

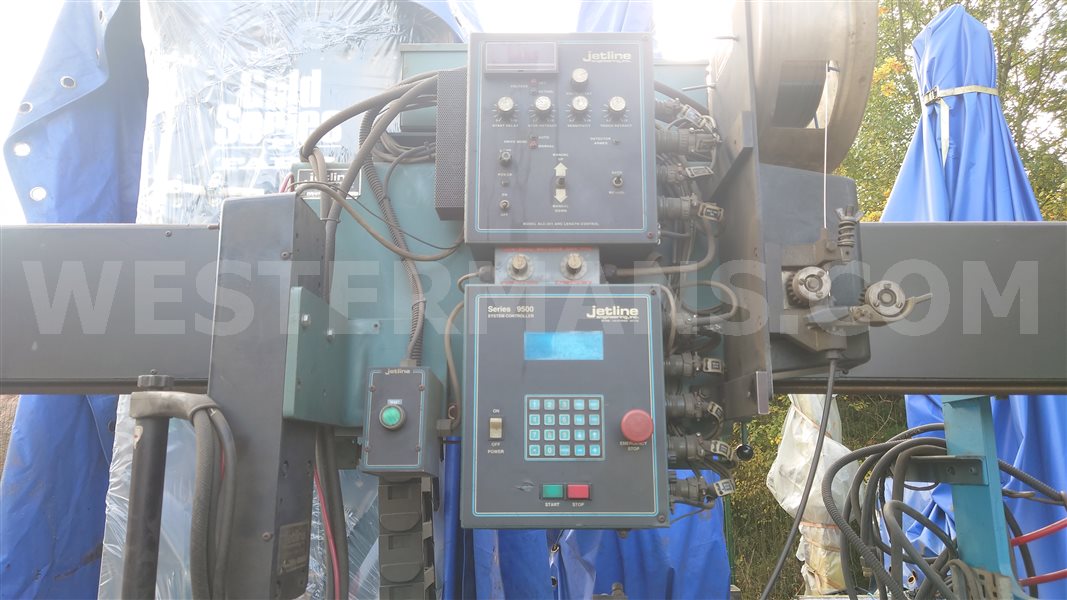

• Jetline longitudinal seam welder, model LWS-120 with Series 9500 controls with ALC and torch height control
• Longitudinal seam welding is a process used to produce linear welds on a wide variety of parts.
• Suitable for many industrial applications where it is necessary to form the material into a desired shape, e.g. a cylinder or rectangular tube, and then weld the edges together to form a rigid structure
• Traditional methods were to hold edges toegether and tack weld. This is costly in labour time and defects.
• A seam welder provides a solution to this type of production by optimising the welding process, reduce welding costs and improve the quality of the weld.
• Extended Side beam, 1500mm weld length to allow a head and tail stock or welding positioner to be used for circumferential welds
• This Jetline seam welder will produce a butt weld free of emtl-through, burnbacks, extreme shirnkage or distortion
• Max OD 900 without using spacer,Min. Dia. 9½ (241)mm,Linear welds up to 10mm material, welding length 3,050mm

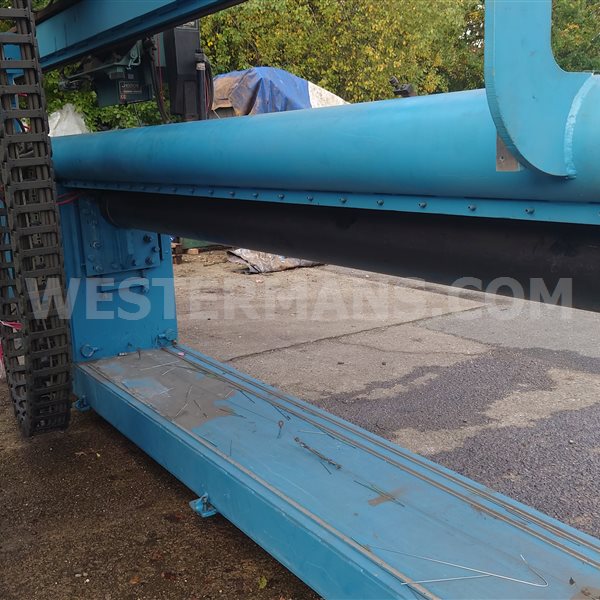

• Package Includes: Water cooled backing bar. Edge setting device. Reversible fingers
• Options of welding process. new, used - MIG, TIG, plasma welding or submerged arc available or use your existing equipment
• LWS - Standard External Seam Welder for all weldable metals:
• For 0.020" to 3/8" (0.5 to 10 mm) thickness

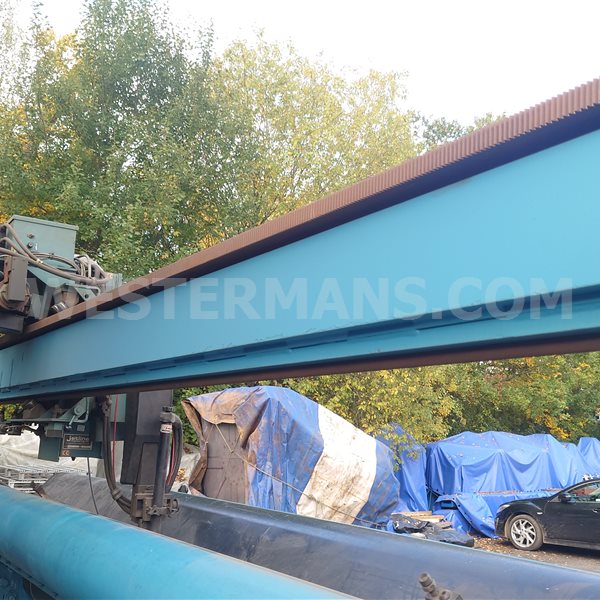

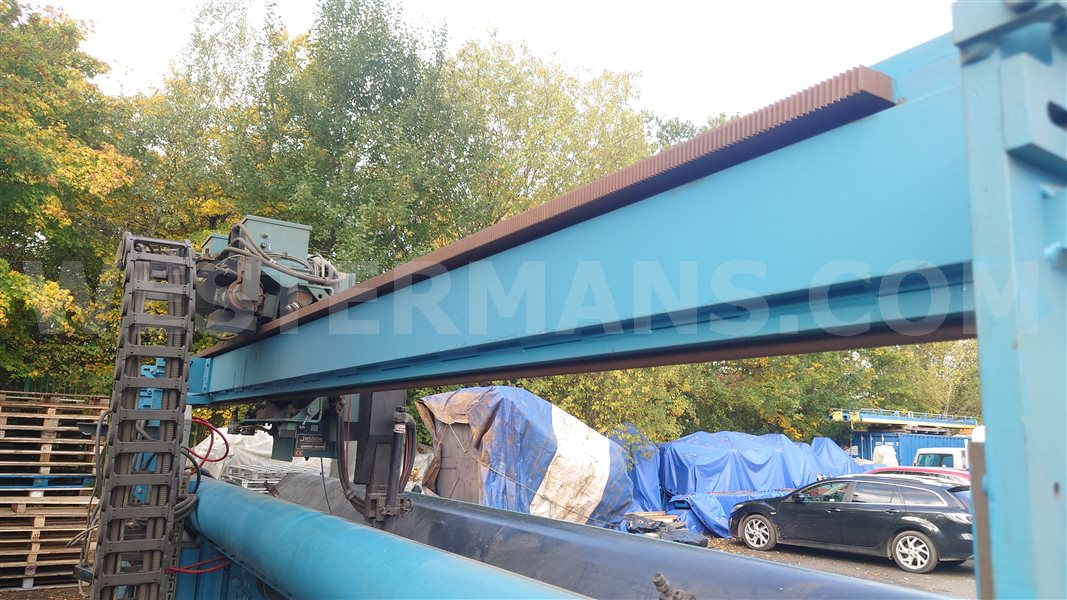

• Rack and Pinion carriage drive
• Travel accuracy is +0.015" (0.4 mm) per 10 ft (3 m)

Package Includes:

• 4 month warranty
